User Port Commodore PET/CBM/64/c64/sx64/128/vic20 Connector 24 pin PCB mount

(No reviews yet) Write a Review
$1.89
SKU:
PCBUSERCBM
UPC:
796520459151
Condition:
New
Shipping:
Calculated at Checkout
Contact Geometry:
Bifurcated
Contact Material:
Brass
Contact Plating:
Gold
Contact Resistance:
10 mOhm
Current:
3 A
Humidity:
5 to 95 % R.H.
Insulation Resistance:
100 GOhm
Insulator:
Polyphenylene
Pins:
24
Temperature Rated:
120 C
Withstanding Voltage:
1600 V (1 Minute)

Product Overview

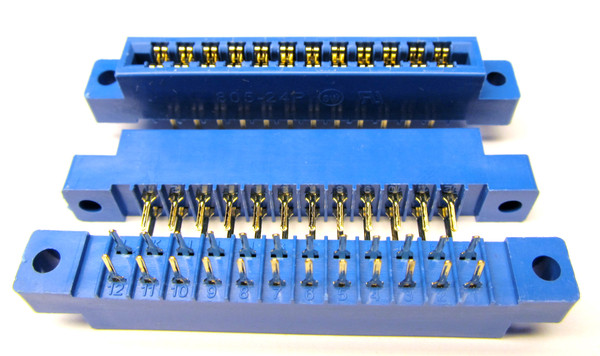

Commodore User Port Connector
Edge connector for the user port of commodore computers (such as PET and Commodore 64) as well as the IEEE-488 port of the PET CBM series computers.


Features 2 rows of 12 contacts (marked with numbers 1...12 and letters A...L), each contact is gold-plated brass, bifurcated for a more reliable signal path.


The terminals are PCB pins, meaning they're designed for soldering into a printed circuit board. For wire-mounting, a different connector (solder eyelet) is available


Also available in packs of 10

A 6-position cassette port connector is also available.
